Barcode Scanner Module 1D/2D/QR Bar Code Scanner Reader Presentation with TTL Interface Can be Applied to All Kinds of Equipment That Need to scan and Read 2D Code Data

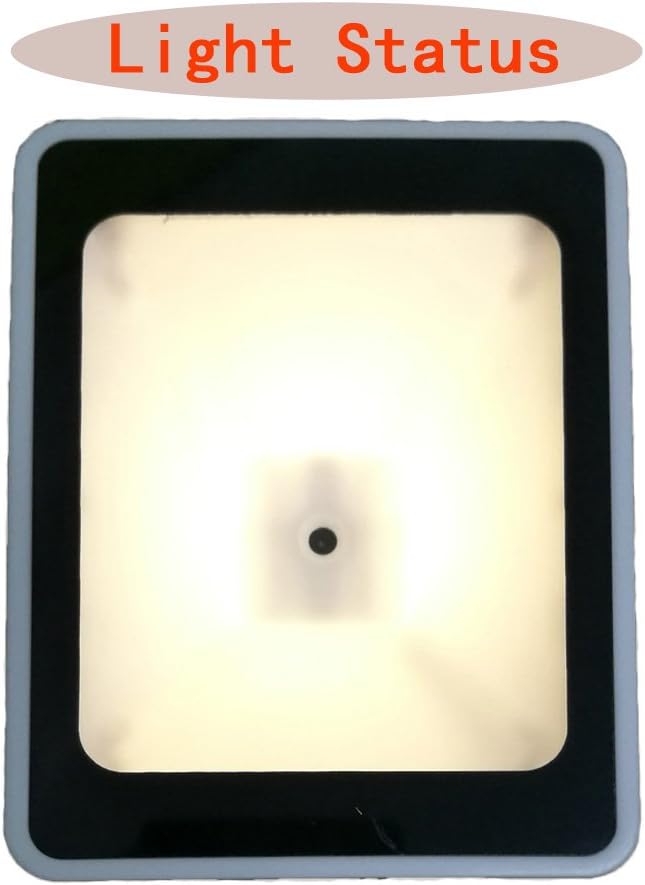

Applications Fields: Embedded QR code scanning module for Smart Access Control, Locker, Channel Gate, Station Inspection Ticket, Smart Self-Service Terminal, Supermarket, Retail Store, POS System, Cash Registers, Warehouse Management, Conference Ticketing,Self-service equipment, medical equipment, consumer machines, ordering machines, Vending machine, charging pile, etc.Which need to scan QR codes to realize QR code reading or payment functions Industry or equipment. Technical Parameters: Voltage:5V. Power:<0.9w. Communication interface:UART TTL Scanning Mode: Omni-directional Auto Sense Scan Mode. Parameter setting method: sweep QR code setting parameter or host command setting. Work tips: Buzzer can be connected, LED indicator. Scan angle: ±60°, ±40°, ±360° (left right, front back, rotation). Decoding type:1D/2D:Code128,UCC/EAN-128,AIM-128,EAN-8,EAN-13, ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,ITF-25,Industrial 25,Standard 25. Code 39,Codabar,Code 93,Code 11,QR Code. Scan Distance:4 to 15cm (adjustable by customer needs). Working temperature: -25°C~55°C. Humidity:5%~95% (Non-condensing). Dimension: 92mm x 74mm x 41mm. Package Includes: 1 x QR Bar code Scanner. 1 x UART TTL Interface line If you need to know the product details, you can contact us via Amazon to send us an email.We will send you the product development materials and setup manual. The product is developed and produced by our company.The company has professional technicians to provide after-sales technical support. Please rest assured to buy; Thank you for your support and trust.

• A small 1D/2D codes Reading module, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
• 2D/QR code scanning module support linux,Android, windows and other systems, Can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays,Sensitive and accurately.
• After receiving our products, connect to the line, after power-on That can scan the code;The module scans the code directly and sends the result to your host computer automatically. After receiving the data, the host computer can proceed to the next step.
• Embedded QR code scanning module for lockers, self-service equipment, medical equipment, consumer machines, ordering machines, Vending machine, charging pile, etc. Industry equipment that needs to scan QR code to realize two-dimensional code reading or payment function.
• Decoding Abilities: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, QR Code etc.
