Electromagnetic Lock with Z and L Bracket 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System
Product details
| Management number | 218566466 | Release Date | 2026/05/03 | List Price | $20.00 | Model Number | 218566466 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

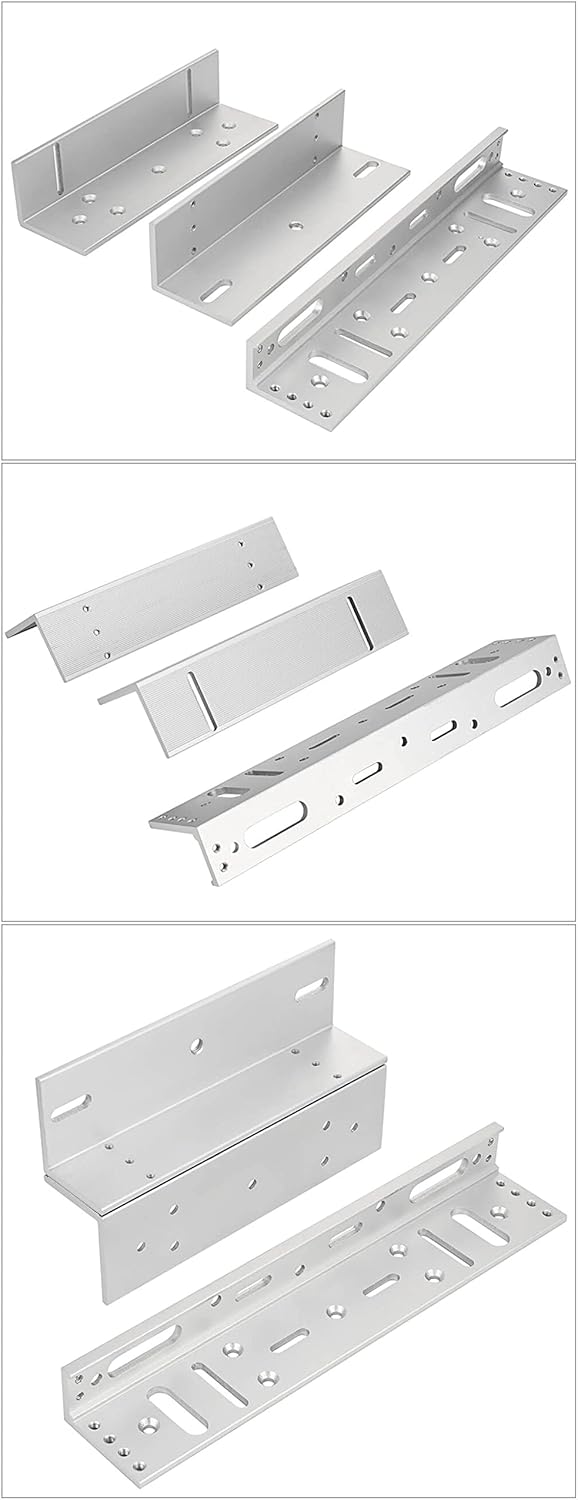

This 600LBS Holding Force electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc. Please check if Z and L brackets are required for installation. Specification: Electromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate Material: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force: 600LBS/280KG Input Voltage: DC 12V Operating Temperature: -10C to +55C (14 to 131F) Operating Current: 480mA Size: 9.84L x 1.93W x 0.98H (inch)/ 290L x 45W x 25H (mm) Armature plate: 7.09L x 1.50W x 0.43H (inch)/ 180L x 38W x 11H (mm) Package Weight: Approx. 4.0lb (1.78KG) Specification of Z and L Bracket: Material: High strength aluminum, sandblast finished Opening Mode: 90 degree door Suitable for Door: Wooden door and metal door Suitable for Lock: Electromagnetic lock series of 600LBS/ 280KG holding force Easy to install and convenient to use Package Weight: 0.60KG/ 1.33 pounds Package list: 1 * Electromagnetic Lock 1 * Armature Plate 1 * Screws Pack 1 * User Manual (English) Package List of Z and L Bracket: 1* "Z" Style Bracket (2 parts) 1 * "L" Style Bracket 1 * Screws Pack
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.
- Size: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).
- Mode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.
- Security protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.
- Wide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
| UPC | 769894489895 |
|---|---|
| Color | 600LBS Lock + ZL Bracket |
| Lock Type | Electromagnetic Lock |
| Brand Name | YUANWIN |
| Model Name | Mag-280KG |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Manufacturer | YUANWIN |
| Model Number | Lock600LBS |
| Material Type | Stainless Steel, High Strength Aluminum |
| Control Method | App |
| Item Type Name | Lock |
| Item Dimensions | 10 x 2 x 1 inches |
| Number of Pieces | 1, 10, 12 |
| Additional Features | Voltage Spike Suppressor |
| Included Components | 1 * Electromagnetic Lock, Armature Plate, Screws Pack, User Manual (English) |
| Manufacturer Part Number | Lock600LBS |
| Recommended Uses For Product | Security |
| Manufacturer Warranty Description | 1 Year Warranty |
