ZP-500N Digital Force Gauge Push Pull Gauge with Data Output Function (no RS232 Cable) 500N 50kgf 110lbf High Precision for Tension Compression Destructive Tests, Backlit LCD Display, Rechargeable

The ZP 500N Digital Force Gauge is a high-precision tool designed for tension, compression, and destructive tests. With a backlit LCD display and a data output function, it offers accurate and convenient force measurement.Accurate ResultsThis push pull force gauge features a high precision of ±0.2%. It can measure forces up to 500N/110lbf/50kgf, with a division of 0.1N/0.1lbf/0.01kgf. The Baud rate is 2400sps, and the sampling speed is 1000 times/sec. Regular calibration is recommended for optimal performance.Data Storage and OutputExtensive Data Storage: Force gauge can store up to 999 measurement data. You can directly view historical data on the backlit LCD display.Data AnalysisConnect the force gauge to a computer via an RS-232 cable for in-depth analysis. USB output can be achieved through an RS232 to USB conversion output line, which is included in each package.Versatile AttachmentsDigital force gauge comes with 6 premium interchangeable attachments, making it suitable for measuring compression, tension, push, and pull forces in various applications.Durable DesignBacklit LCD: The LCD display has a backlight, ensuring clear visibility even in low-light conditions.Sturdy Metal Shell: The force gauge is housed in a sturdy metal shell. It has M4 holes on the back for mounting on a test stand (test stand not included).Rechargeable BatteryEquipped with a built-in NIMI rechargeable battery and an AC adapter. When fully charged, it can be used continuously for about 6 hours, and each charge should not exceed 8 hours.Usage NotesCorrect Force Direction: Always use the force in the correct direction to avoid damaging the sensor.Avoid Overloading: Do not overload the gauge. The LED will flash to alert you if overloading occurs.SPECIFICATION-Max. Load: 500N / 50kgf / 110 lbf-Resolution: 0.1N / 0.1kgf / 0.01lbf-Accuracy: ±0.2%-Baud Rate: 2400sps-Sampling Speed: 1000times/sec-Power Supply: 1000mAh 5V Ni-MH rechargeable battery-Voltage: AC 100-240V 50-60Hz-Peak Hold: Yes-Data Storage: 999 values-Working Condition: 0-40℃ (for higher accuracy), 20-80%RH-Size: 8.7*3.1*1.3in-N.W.: 1.15lbsPACKAGE-1 x Digital Forge Gauge-6 x Force Gauge Attachment-1 x Charging Adapter-1 x Carry Case-1 x User Manual

• High-Precision: Digital push pull force gauge features a high precision of ±0.2%, and can measure forces up to 500N/110lbf/50kgf, division of 0.1N/0.1lbf/0.01kgf, Baud rate of 2400sps, and the sampling speed is 1000 times/sec; regular calibration is recommended for optimal performance
• Data Storage and Output: Digital push pull force gauge can store up to 999 measurement data, convenient to directly view historical data on the backlit LCD display, and it also allows you to connect the gauge to a computer via an RS232 to USB cable for in-depth analysis (cable and software NOT included)
• Versatile Attachments: Digital push pull force gauge comes with 6 premium interchangeable attachments, making it suitable for measuring compression, tension, push, and pull forces in various applications

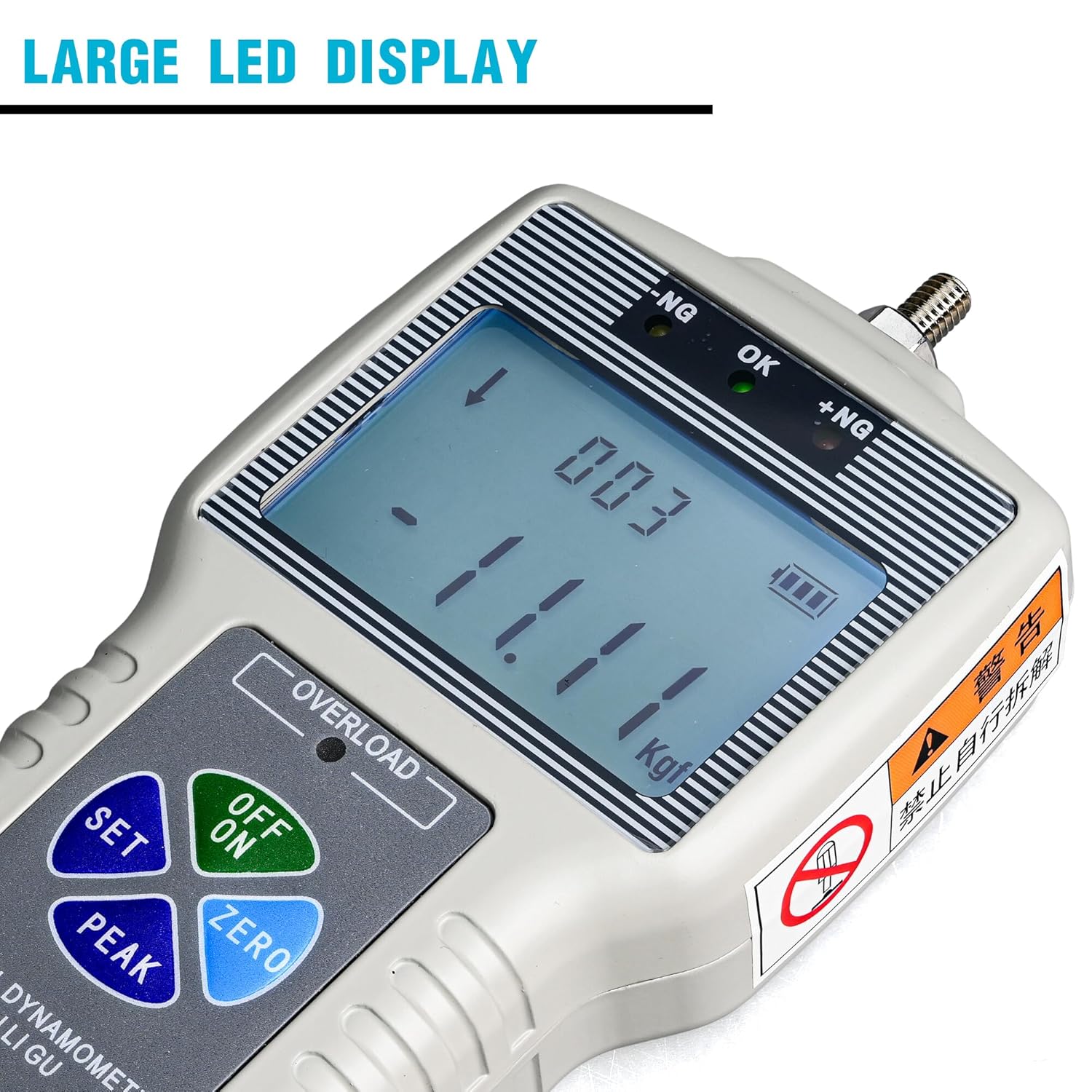

• Durable Design: Digital push pull force gauge features an LCD display with backlight, ensuring clear visibility even in low-light conditions, housed in a sturdy metal shell with M4 holes on the back for mounting on a test stand (test stand not included)
• Rechargeable Battery: Equipped with a NIMI rechargeable battery and an AC adapter, when fully charged, this digital push pull force gauge can be used continuously for about 6 hours, and each charge should not exceed 8 hours
• Attention: 1. Always use the force in the correct direction to avoid damaging the sensor; 2 Do not overload the gauge. The LED will flash to alert you if overloading occurs
• Digital push pull force gauge is widely applicable to general purpose in industries of electronic appliances, building hardware, light industry and textile, auto parts, lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, lab research, and more
